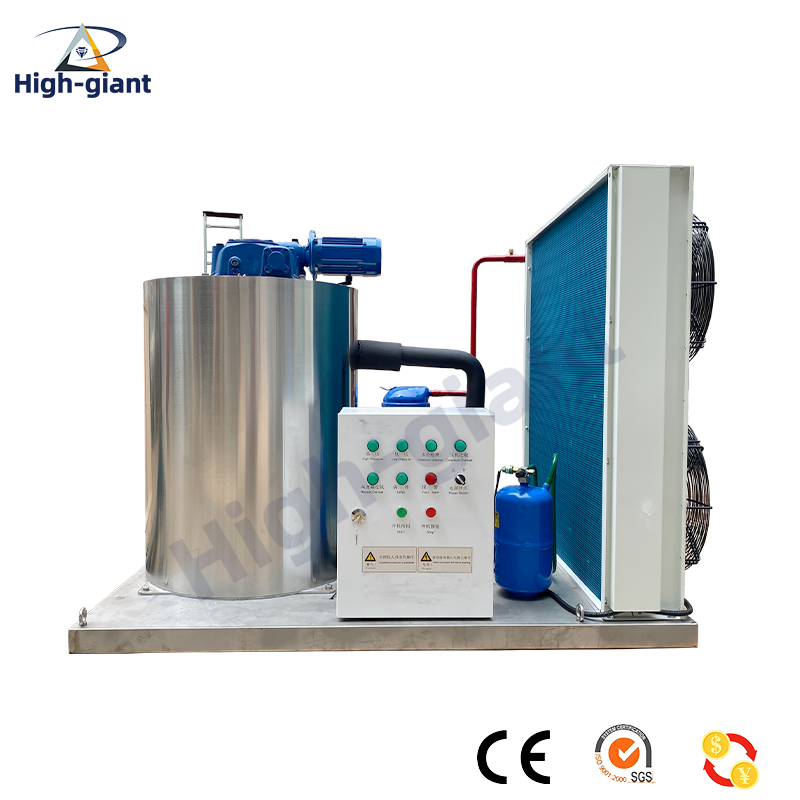

2.0 T flake ice machine
Commercial Flake Ice Machine 2T
Brand:High-giant |
|---|
Shipping Port:Guangzhou Port |
Warranty: 1 year |
Product parameters:：
model: | HSW-2.0T | Cooling capacity: | 13400W |
|---|---|---|---|
Condensation method: | Air cooling | Total power: | 7.3KW |
Compressor capacity: | 10HP | weight: | 350kg |
Compressor: Bitzer (Germany)

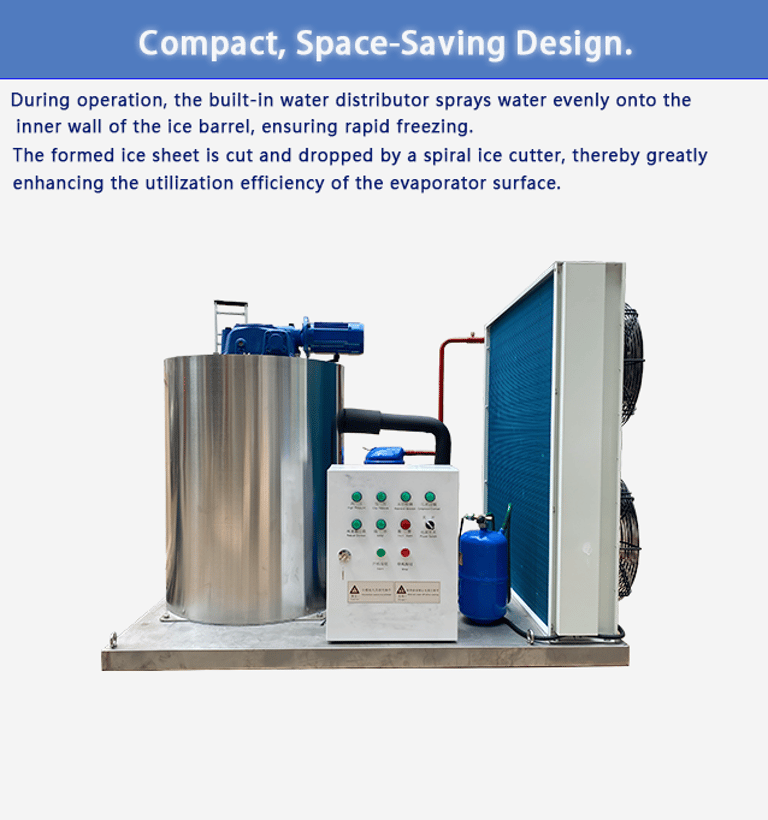

Evaporator: Self-designed, self-manufactured and self-processed high-efficiency ice-making cylinder
Condenser: Copper tube aluminum fin air-cooled condenser / shell-and-tube water-cooled condenser
Expansion Valve: Brands of Danfoss and Emerson
Refrigerant: Environmentally friendly refrigerant
Electric Control Box: PLC programmable controller (touch screen operation interface is optional)
Power Supply: 3P／380V／50Hz (can be customized according to customer requirements)
Evaporator Configurations of Medium-Sized Ice Machine

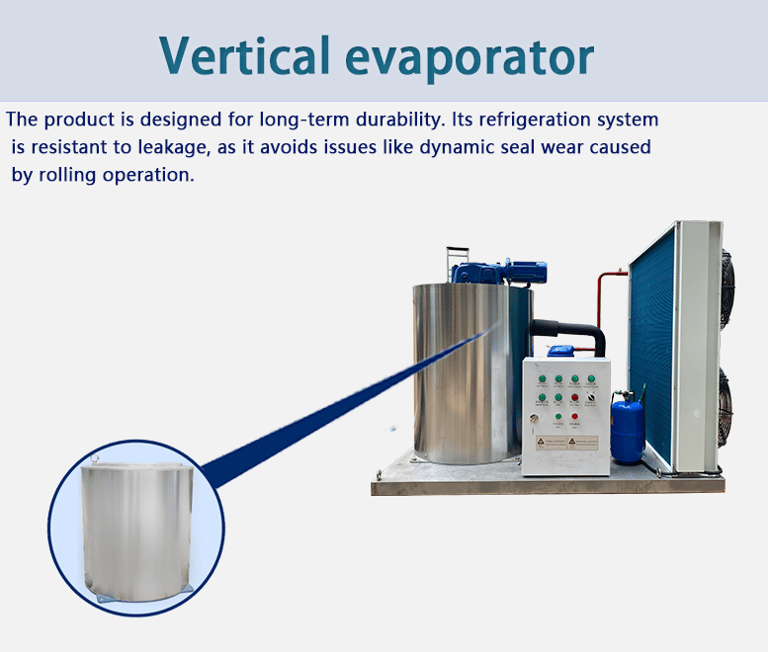

Evaporator: Self-designed, self-manufactured and self-processed high-efficiency ice-making cylinder
Evaporator Base: Aluminum alloy / 304 stainless steel
Reducer: Turbine design
Ice Cutter: 304 stainless steel spiral cutter
Water Pump: Anti-corrosion circulating water pump
Brine Pump: Anti-corrosion pulse metering pump
Water Tank: Self-made 304 stainless steel with heat preservation function
Application System: Freon refrigeration system, ammonia refrigeration system, direct expansion refrigeration system, flooded refrigeration system.
Applications of Medium-Sized Flake Ice Machine
High-giant flake ice machine is suitable for marine fisheries, aquatic product processing, aquatic product preservation and cooling, food preservation, slaughtering and food processing production, as well as freezing and refrigeration in hotels and bars.
Flake ice is widely used in various links such as refrigeration, transportation and processing of aquatic products like fish. During application, flake ice can provide a suitable low-temperature environment to achieve the effects of preservation and cooling. With the mandatory implementation of food safety production, the unique processing method of flake ice maintains its cleanliness during the production process. It can be directly added to food, and also prevents food from deteriorating due to temperature rise during processing, thus ensuring food quality.
Operating Conditions of Ice Machine
Rated Operating Conditions: The ambient temperature is 23℃, and the water temperature is 15℃. For every 5℃ decrease in ambient temperature and water temperature, the ice production capacity increases by 10%.
Working Power Supply: 3P/380V/50Hz (can be customized according to customer requirements), with a voltage fluctuation range of ±10%.
Water Supply Pressure: 0.1Mpa - 0.3Mpa
Operating Conditions of Refrigeration Unit: Evaporation temperature is -20℃, condensation temperature is 40℃.
Flake Ice Thickness: 1.5 - 2.6mm, and the flake ice temperature reaches -8℃
