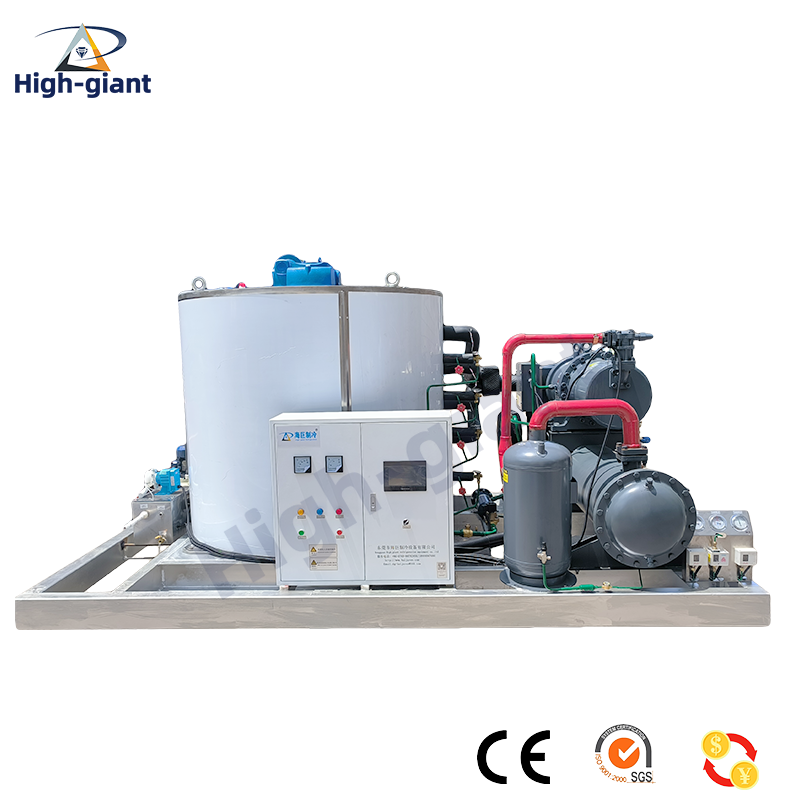

20T ice maker
Industrial Flake Ice Machine (20T)
Flake ice machine models and performance parameters:
model: | HSW-20T | Cooling capacity: | 110W |
|---|---|---|---|
Condensation method: | Air cooling | Total power: | 66KW |
Compressor capacity: | 100HP | weight: | 3500kg |
Designed ice production： | 20000kg/d | Evaporation temperature | -20° |
Evaporator parameter table：
model: | HSWE-20T |
|---|---|
Reducer power: | 1.5KW |
Ice making circulation pump power: | 0.55KW |
Compressor capacity: | 90hp |
weight: | 1100kg |
Please refer to the product manual for the specific parameters of the flake ice machine. Any changes will be made without prior notice!
20T ice maker
Compressor: Hanbell screw compressor/Bitzer
Evaporator: High-efficiency ice bucket designed, manufactured, and processed independently
Condenser: Shell and tube water condenser
Expansion valve: Danfoss, Emerson
Refrigerant: Environmentally friendly
Controller: PLC (optional touchscreen interface)
Power supply: 3N/380V/50Hz (customizable upon request)
Large flake ice machine features:
Compressor: Hanbell screw compressor/Bitzer
Evaporator: High-efficiency ice bucket designed, manufactured, and processed independently
Condenser: Shell and tube water condenser
Expansion valve: Danfoss, Emerson
Refrigerant: Environmentally friendly refrigerant
Controller: PLC (optional touchscreen interface),
power supply. 3N/380V/50Hz (customizable)
Large Ice Machine Evaporator Configuration:
Evaporator: In-house designed, manufactured, and processed high-efficiency ice bucket
Evaporator Base: Aluminum Alloy/304 Stainless Steel
Reducer: Turbine Design
Ice Blade: 304 Stainless Steel Spiral Blade
Water Pump: Corrosion-Resistant Circulating Water Pump
Brine Pump: Corrosion-Resistant Pulse Metering Water Pump
Water Tank: Custom-Made 304 Stainless Steel with Insulation
Application Systems: Freon Refrigeration Systems, Ammonia Refrigeration Systems, Direct Expansion Refrigeration Systems, Flooded Refrigeration Systems
Large Flake Ice Machine Applications:
Haiju's large flake ice machines, leveraging precise processing technology, professional technical personnel, and a stable operating system, are widely used in aquatic product processing, food production, cold storage, ice plants at ports and terminals, ice storage projects, chemical dye cooling, artificial ski resorts, and other large-scale projects such as concrete cooling and coal mine cooling.
Haiju's large flake ice machines have a fully automatic ice storage system, including a containerized ice storage bin, flake ice conveying system, weighing system, and electronic control system.
Containerized ice storage units are available in 10, 15, and 20
ton models (based on storage capacity). Flake ice delivery system: includes an ice rake with automatic lifting mechanism, ice door with opening and closing mechanism, and spiral or pneumatic ice delivery pipes.
Weighing system: includes a weight meter.
