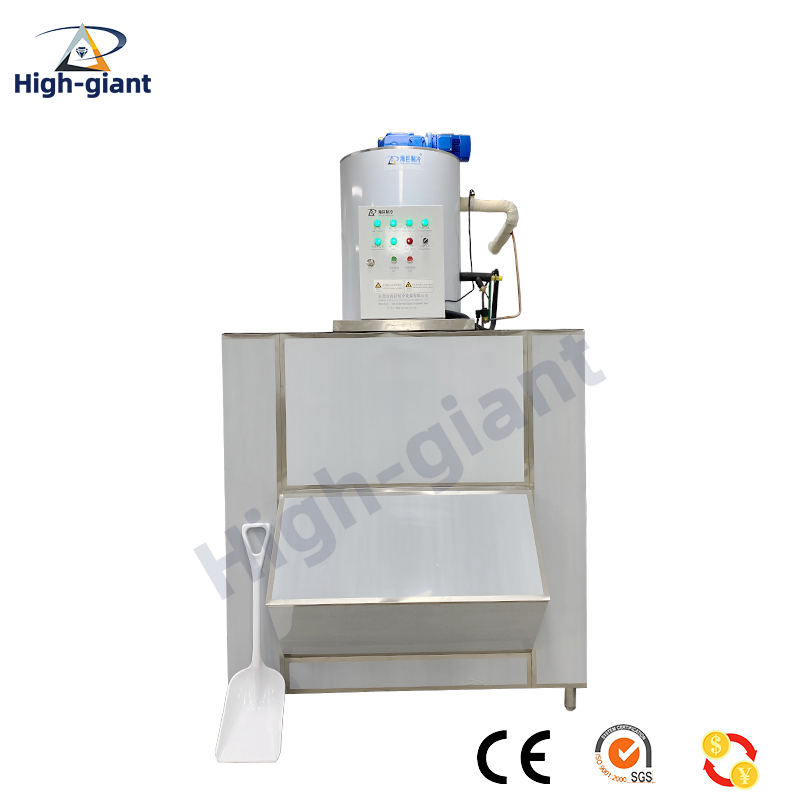

2.5 T flake ice machine
Commercial Flake Ice Machine 2.5T
Brand:High-giant |
|---|
Shipping Port:Guangzhou Port |
Warranty: 1 year |
Product parameters:：
model: | HSW-2.5T | Cooling capacity: | 16250W |
|---|---|---|---|
Condensation method: | Air cooling | Total power: | 9.5KW |
Compressor capacity: | 12HP | weight: | 450kg |

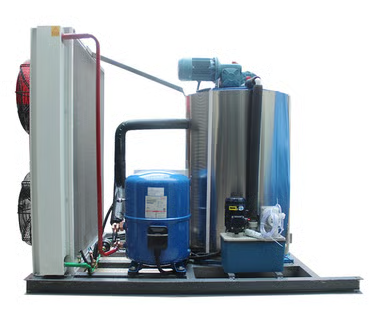

Main Configurations of Small Flake Ice Machine
Compressor: Copeland (USA), Danfoss, Maneurop
Evaporator: Self-designed, self-manufactured, and self-processed high-efficiency ice-making barrel
Condenser: Copper tube and aluminum fin air-cooled condenser
Expansion Valve: Brands of Danfoss and Emerson
Refrigerant: Environmentally friendly refrigerant
Electric Control Box: PLC (Programmable Logic Controller)
Power Supply: 3P/380V/50Hz (customizable according to customer requirements)

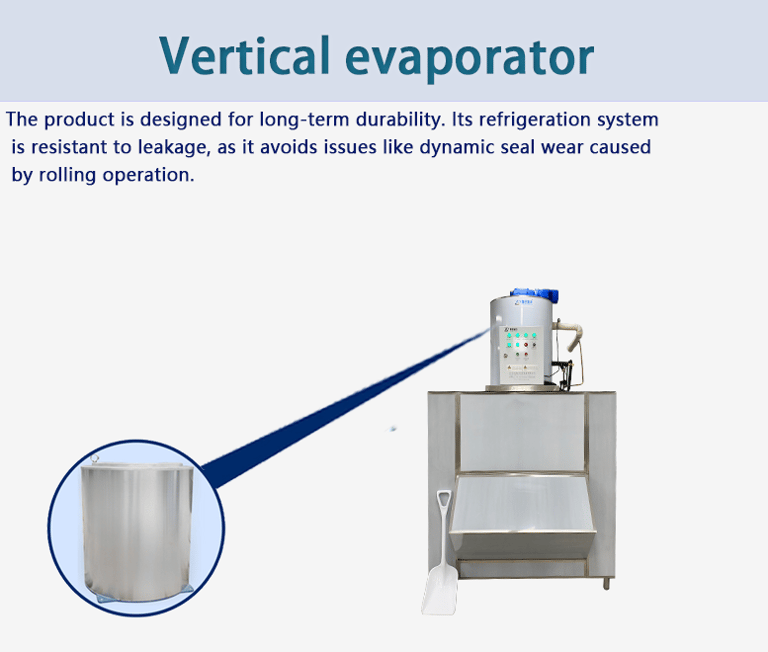

Evaporator Configurations of Small Ice Machine
Evaporator: Self-designed, self-manufactured, and self-processed high-efficiency ice-making barrel
Evaporator Base: Aluminum alloy / 304 stainless steel
Reducer: Turbine design
Ice Cutter: 304 stainless steel spiral cutter
Water Pump: Corrosion-resistant circulating water pump
Brine Pump: Corrosion-resistant pulse metering pump
Water Tank: Self-made 304 stainless steel with thermal insulation
Application Systems
Freon refrigeration system
Ammonia refrigeration system
Direct expansion refrigeration system
Flooded refrigeration system.
Applications of Small Commercial Flake Ice Machines
High-giant flake ice machines are widely used for the fresh-keeping of perishables, refrigerated preservation of vegetables, and preservation of fruits in hypermarkets, supermarkets, and other retail venues. The flake ice not only prevents refrigerated items from dehydration—thus maintaining their original color and quality—but also avoids scratching the items. This effectively extends the storage time of refrigerated goods.
Additionally, this type of ice machine is well-suited for the preservation and refrigeration of fish in seafood markets and seafood restaurants. The flake ice helps keep seafood at an optimal temperature, ensuring it retains its original flavor.
Operating Conditions of the Ice Machine
Rated Operating Conditions: The ambient temperature is 23℃, and the water temperature is 15℃. For every 5℃ decrease in both ambient temperature and water temperature, the ice production capacity increases by 10%.
Operating Power Supply: 3P/380V/50Hz (customizable according to customer requirements), with a voltage fluctuation range of ±10%.
Water Supply Pressure: 0.1Mpa - 0.3Mpa
Operating Conditions of the Refrigeration Unit: Evaporation temperature is -20℃, and condensation temperature is 40℃.
Flake Ice Thickness: 1.5 - 2.6mm; the temperature of the flake ice reaches -8℃
