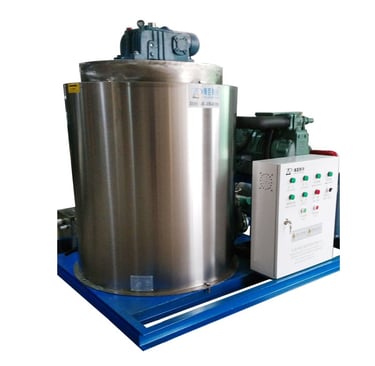

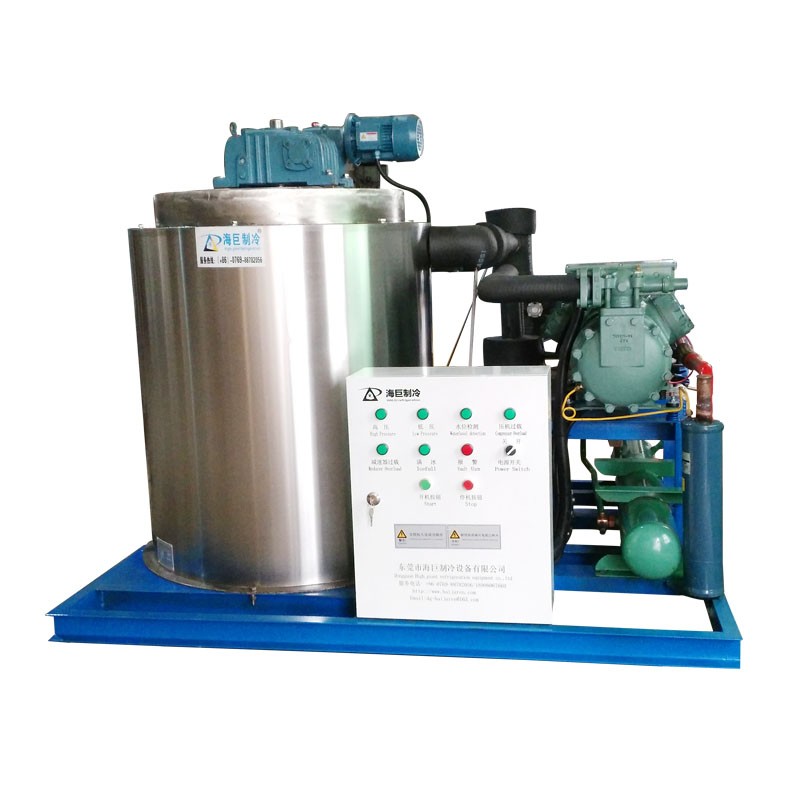

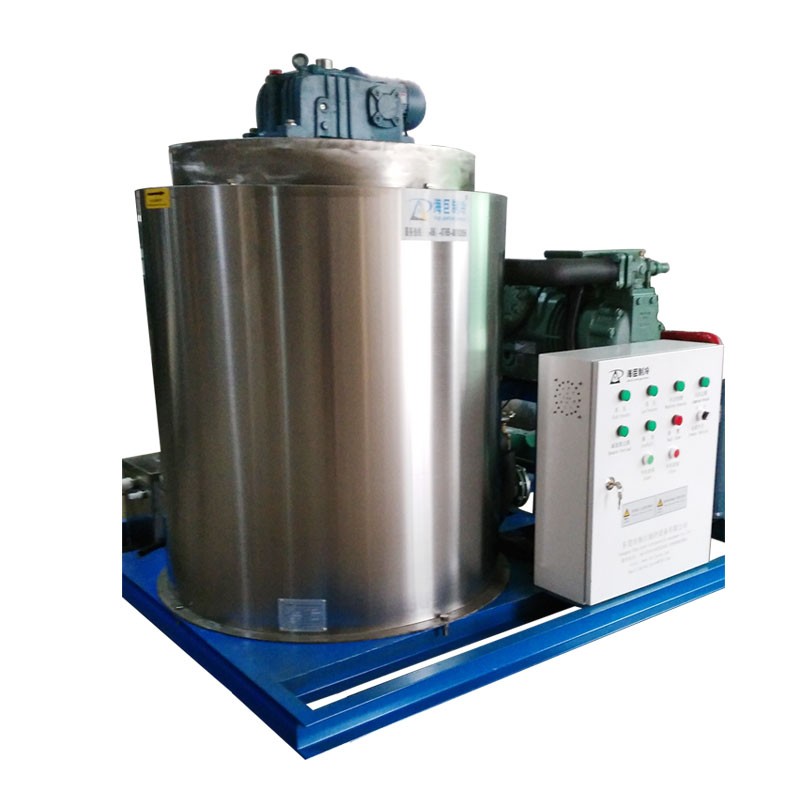

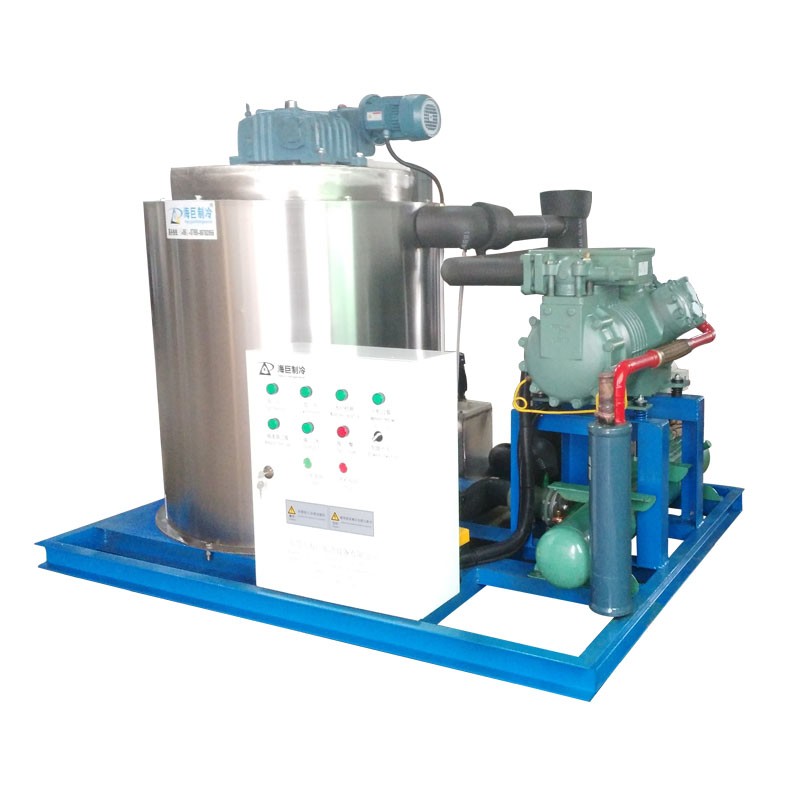

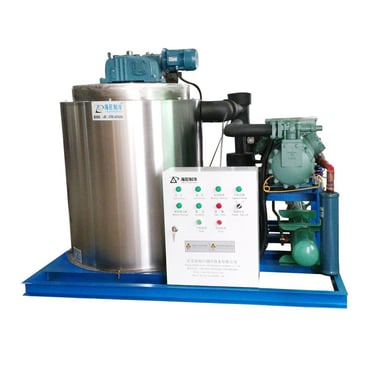

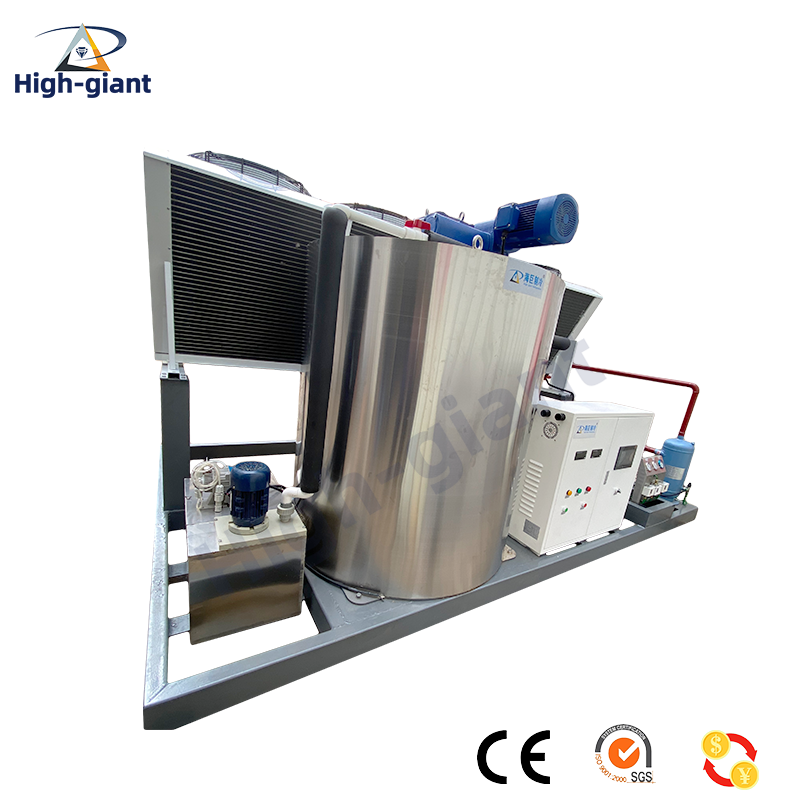

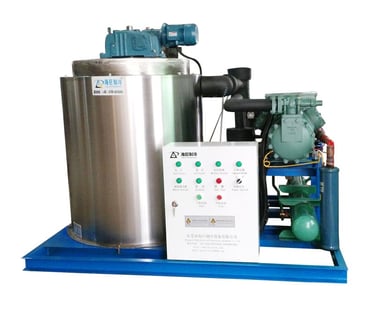

Industrial Flake Ice Machine (8T)
Flake ice machine models and performance parameters:
model: | HSWE-08T | Cooling capacity: | 3450W |
|---|---|---|---|
Condensation method: | Air cooling | Total power: | 0.18KW |
Compressor capacity: | 3HP | weight: | 75kg |
Designed ice production： | 300kg/d | Evaporation temperature | -20° |
8T ice maker
Compressor: Bitzer, Germany
Evaporator: High-efficiency ice bucket, designed, manufactured, and processed independently
Condenser: Copper tube and aluminum fin air-cooled condenser/shell-and-tube water condenser
Expansion valve: Danfoss, Emerson
Refrigerant: Environmentally friendly refrigerant
Electrical control box: PLC (optional touchscreen interface)
Power supply: 3N/380V/50Hz (customizable upon request)
Medium-sized flake ice machine features:
Compressor: German BITZER
Evaporator: High-efficiency ice bucket designed, manufactured, and processed independently
Condenser: Copper tube and aluminum fin air-cooled condenser/shell-and-tube water condenser
Expansion valve: Danfoss, Emerson
Refrigerant: Environmentally friendly refrigerant
Electrical control box: PLC (optional touchscreen interface)
Power supply: 3N/380V/50Hz (customizable)

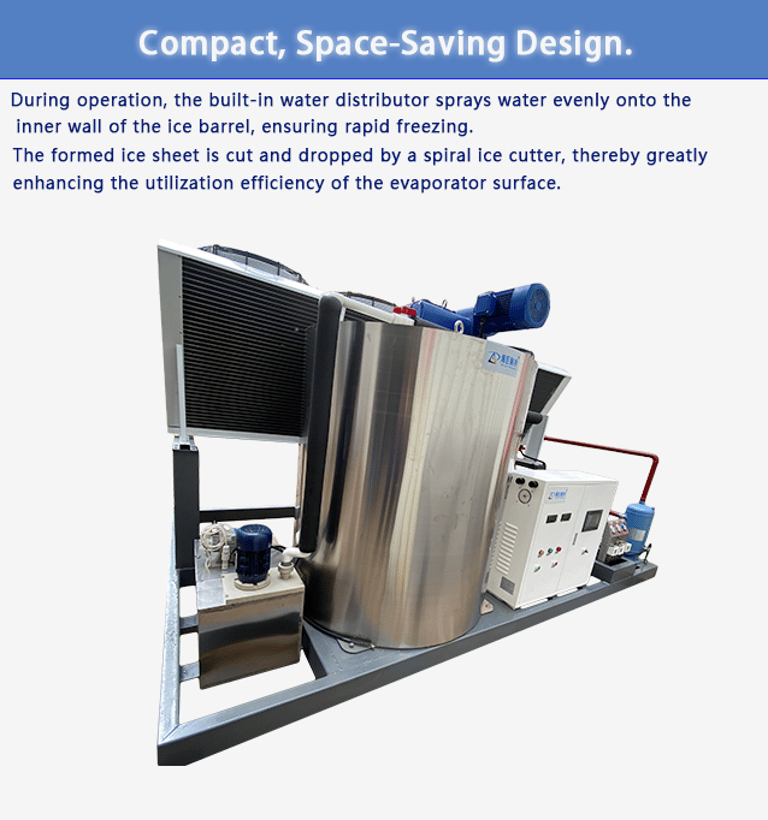

Medium-sized ice machine evaporator features:
Evaporator: High-efficiency ice bucket designed, manufactured, and processed independently
Evaporator base: Aluminum alloy/304 stainless steel
Reducer: Turbine design
Ice blade: 304 stainless steel spiral blade
Water pump: Corrosion-resistant circulating water pump
Brine pump: Corrosion-resistant pulse metering water pump
Water Container: Homemade 304 stainless steel with insulation.
Application Systems: Freon refrigeration systems, ammonia refrigeration systems, direct expansion refrigeration systems, and flooded refrigeration systems
. Medium-sized flake ice machine applications:
Haiju flake ice machines are suitable for marine fisheries, aquatic product processing, aquatic product preservation and cooling, food preservation, slaughtering and food processing, and hotel and bar refrigeration.
Flake ice is widely used in the refrigeration, transportation, and processing of fish and other aquatic products. During use, flake ice provides an ideal low-temperature environment, achieving both freshness preservation and cooling. Enforcement of food safety and the unique flake ice processing method ensure the cleanliness of the ice during production. It can be directly added to food, preventing food spoilage due to elevated temperatures during processing, thus ensuring food quality.
Ice Machine Operating Conditions:
1. Standard Operating Conditions: Ambient temperature of 23°C, water temperature of 15°C. When the ambient temperature and water temperature decrease by 5℃, the ice production capacity increases by 10%.
2. Working power supply: 3N/380V/50Hz (can be customized according to customer requirements), voltage fluctuation range ±10%.
3. Water supply pressure: 0.1Mpa-0.3Mpa.
4. Refrigeration unit operating conditions: evaporation temperature -23℃, condensation temperature 40℃,
5. Ice thickness: 1.5-2.6mm, ice temperature reaches -8℃.
