0.2-0.3T small ice maker

0.2-0.3T small ice maker

Compressors: Copeland, Danfoss, and Maureen;
Evaporator: High-efficiency ice buckets designed, manufactured, and processed independently
; Condenser: Copper tube, aluminum fin, air-cooled condenser;
Expansion valve: Danfoss and Emerson;
Refrigerant: Environmentally friendly
; Control box: PLC;
Power supply: 3N/380V/50Hz (customizable upon request)
Small Flake Ice Machine Main Features:
　　Compressor: Copeland, Danfoss, Maureen
　　Evaporator: High-efficiency ice bucket designed, manufactured, and processed independently
　　Condenser: Copper tube and aluminum fin air-cooled condenser
　　Expansion valve: Danfoss, Emerson
　　Refrigerant: Environmentally friendly refrigerant
　　Electrical control box: PLC programmable controller
　　Power supply: 3N/380V/50Hz (customizable upon request)

Small Ice Machine Evaporator Configuration:

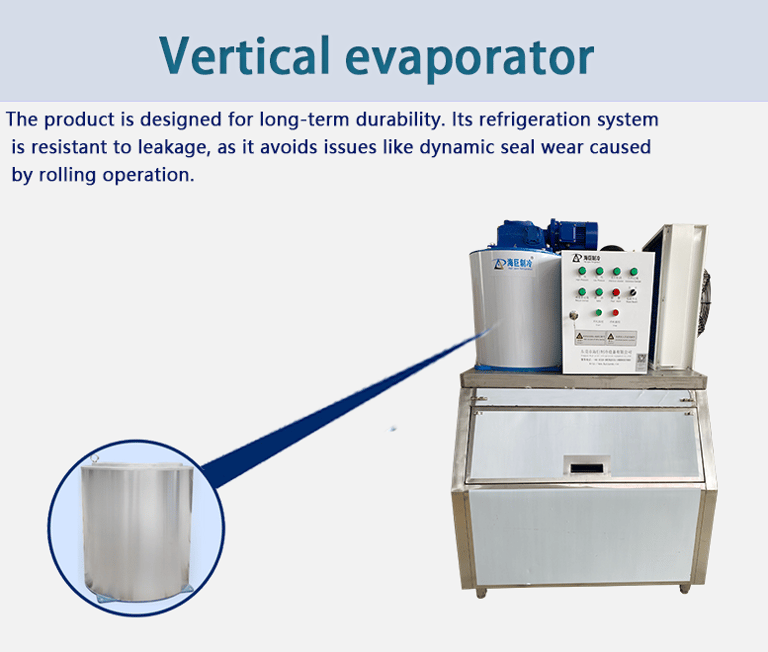

　　High-efficiency ice bucket designed, manufactured, and processed independently Evaporator
　　base: Aluminum alloy/304 stainless steel
　　Reducer: Turbine design
　　Ice blade: 304 stainless steel spiral blade
　　Water pump: Corrosion-resistant circulating water pump
　　Brine pump: Corrosion-resistant pulse metering water pump
　　Water Box: Homemade 304 stainless steel with insulation.
Application Systems: Freon, ammonia, direct expansion, and flooded refrigeration systems.

Applications of Small Commercial Flake Ice Machines:
　　Haiju ice machines are widely used in supermarkets and other areas for fresh produce preservation, vegetable and fruit refrigeration, and other applications. Flake ice not only prevents refrigerated items from dehydrating, preserving their original color and quality, but also prevents scratches on items, extending their storage life.
　　This type of ice machine is also ideal for preserving and refrigerating fish in seafood markets and restaurants. Flake ice keeps seafood at an optimal temperature, preserving its original flavor.

Ice Machine Operating Conditions:
　　1. Standard Operating Conditions: Ambient temperature 23°C, water temperature 15°C. When the ambient temperature and water temperature decrease by 5℃, the ice production capacity increases by 10%.
　　2. Working power supply: 3N/380V/50Hz (can be customized according to customer requirements), voltage fluctuation range ±10%.
　　3. Water supply pressure: 0.1Mpa-0.3Mpa.
　　4. Refrigeration unit operating conditions: evaporation temperature -23℃, condensation temperature 40℃,
　　5. Ice thickness: 1.5-2.6mm, ice temperature reaches -8℃.
